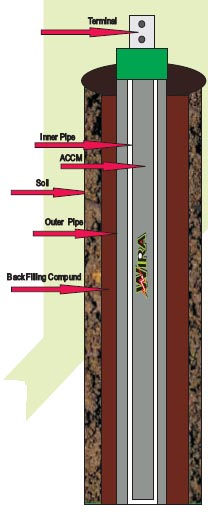

| Installation Method | TERMINAL | |
 |
Augur/Drill/Bore a hole of 6-8 inch diameter at to a suitable depth of 2-3 meters(Electrode Length). |  |
|
Throw handful compound into the pit. | |
|
Remove the plastic sleeve carefully from the electrode. | |
|
Place the electrode at centre of the pit. | |
|
Then pour some water and gently poke around the pit with a long wooden rod, to allow trapped air to escape. | |
|
In this manner gradually continue the filling process till the electrode is buried in the pit up to the green patch painted on top portion of electrode. | |
|
Ensure that the pit is not watery. | |
|
Pack the electorde with soil tightly, so that it stands firmly in the pit | |
|
Pour a few buckets of water around the pit. | |
|
In hard and sandy soil conditions, do not mix compound with dug out soil. Use backfill compound only with water as above | |
|
If auguring not possible up to 3 meters inform customer/dealer. | |
|
Construct a chamber for protection of the terminal. | |
|
IMPORTANT: Proper Installation is the key to successful performance of the earthing electrode. | |
|
Augur/Drill/Bore a hole of 6-8 inch diameter at to a suitable depth of 2-3 meters(Electrode Length). | |
